How to: Test your FITV valve

As much of the Lude knowledge we have in one handy place
Post Reply
User avatar
quarkhimself
Posts: 190
Joined: Sun Jun 16, 2013 8:56 pm
My Generation: 4G
PSN GamerTag: quarkhimself
Location: southampton

Post by quarkhimself » Tue May 20, 2014 4:16 pm

i did this today on my car and it solved my problem with the idle going up and down between 750rpm-1500rpm. thank you !
'91 4th gen SI VTEC 4WS JDM phantom gray H22a SALE AGREED :(
FOR SALE - 4TH GEN REAR BUMPER UKDM SHERWOOD GREEN
Top
User avatar
vanzep
Supporter 2016
Posts: 7170
Joined: Sun Jan 29, 2012 6:38 pm
My Generation: 4G
Location: Edinburgh
Has thanked: 314 times
Been thanked: 520 times

Post by vanzep » Tue May 20, 2014 5:14 pm

bb1boy wrote:Yo @vanzep, I'm interested in the answer to GJMHONDA's question too.. :D
sorry i missed these psots :)
like GMJ says around 30 mins and you dont lose a lot of coolant but always a good idea to have some handy just in case ;)
1996-2000 1993 EG9 Blue Civic 1.6 Vti - Traded in against the BB4
2000-2019 1994 2WS BB4 Milano Red JDM Prelude Si VTEC LSD

2015 on > 1991 4WS BB1 Phantom Pearl Grey JDM Prelude Si VTEC LSD
2021 ON > 1998 2WS BB6 White Pearl JDM Prelude Si VTEC
Top
User avatar
vanzep
Supporter 2016
Posts: 7170
Joined: Sun Jan 29, 2012 6:38 pm
My Generation: 4G
Location: Edinburgh
Has thanked: 314 times
Been thanked: 520 times

Post by vanzep » Fri Nov 18, 2016 2:55 pm

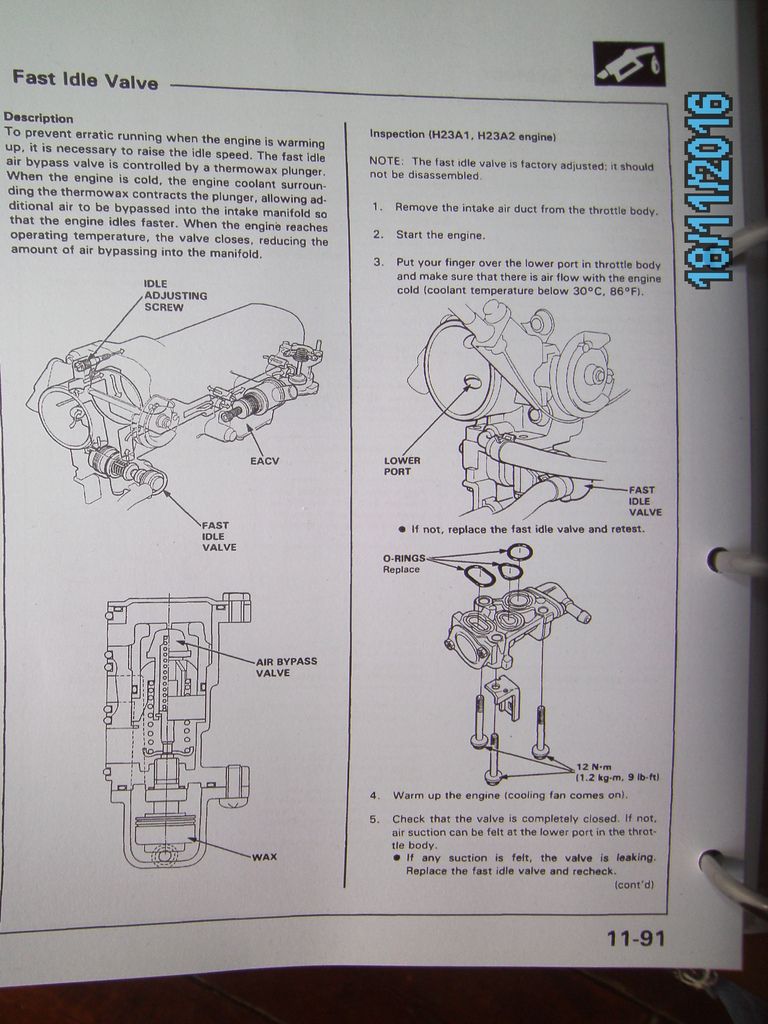

pic of page in manual showing how to test fitv (jayjay has removed his pics from page 1)
this is exactly the same.
1996-2000 1993 EG9 Blue Civic 1.6 Vti - Traded in against the BB4
2000-2019 1994 2WS BB4 Milano Red JDM Prelude Si VTEC LSD

2015 on > 1991 4WS BB1 Phantom Pearl Grey JDM Prelude Si VTEC LSD
2021 ON > 1998 2WS BB6 White Pearl JDM Prelude Si VTEC
Top
User avatar
Lankysod07
Posts: 744
Joined: Mon Oct 13, 2014 10:50 am
My Generation: 5G
XBOX GamerTag: Tumber07
Location: Chandler's Cross, Rickmansworth
Has thanked: 13 times
Been thanked: 11 times

Post by Lankysod07 » Mon Feb 06, 2017 11:55 am

I changed my FITV this weekend, as the previous install I did I tightening the cap all the way down.

This time I have unscrewed it 3 times and idles much better now.

However, every now and then I will stop and press the clutch in and it will start to bounce again. I know the FITV is not faulty as I have tried two known working ones and they both do they same.

Do you reckon I need to bleed the system of air?
Top
User avatar
Merlin
Moderator
Posts: 12397
Joined: Fri Aug 06, 2010 9:04 am
My Generation: 5G
PSN GamerTag: Merlinbadman
Location: Edinburgh
Has thanked: 71 times
Been thanked: 306 times

Post by Merlin » Mon Feb 06, 2017 12:25 pm

You may need to clean your IACV. The IACV controls idle when the engine is warm.
BA8......... BB4......... BB8.........The JDM Muscle Bus
Top
