Front Fog Light - Factory Install Guide - 4th Gen

mart609 · Post by **mart609** » Mon May 25, 2015 1:18 pm

Bit of a writeup on my profile 1st page

http://www.ludegeneration.co.uk/profile ... -t174.html

Post by **vanzep** » Tue Jun 09, 2015 6:59 pm

Facelift BB4 - just to say the relay location is right - the 4 pin brown connector has different wire colours to what the manual states hence some confusion and me searching for another 4 pin brown connector when i had the right connector in the first place.
Turns out it is the 5th gen switch that doesnt work in 4th gen. So all i need is 4th gen switch and thats it done.
Fogs work

alinton · Post by **alinton** » Tue Sep 29, 2015 5:45 pm

Resurrecting this... I'm blowed if I can find the elusive brown 4-pin connector that the relay plugs into.

There's a 3-pin one, not no 4.

Any better ideas about where it should be?

Mine is a facelift.

Ta

Andy.

Post by **vanzep** » Tue Sep 29, 2015 10:38 pm

It should be at the top and back of the fuse box in the drivers footwell

alinton · Post by **alinton** » Wed Sep 30, 2015 7:30 pm

Well I'm blowed if I can find it. The instructions say it's next to the steering column, nope. Vanzep says above the fuse box, nope. I even unscrewed the fuse box in case it was behind it, but nope.

Is it certain that my car has it? Do they all? Mine is a facelift ver.

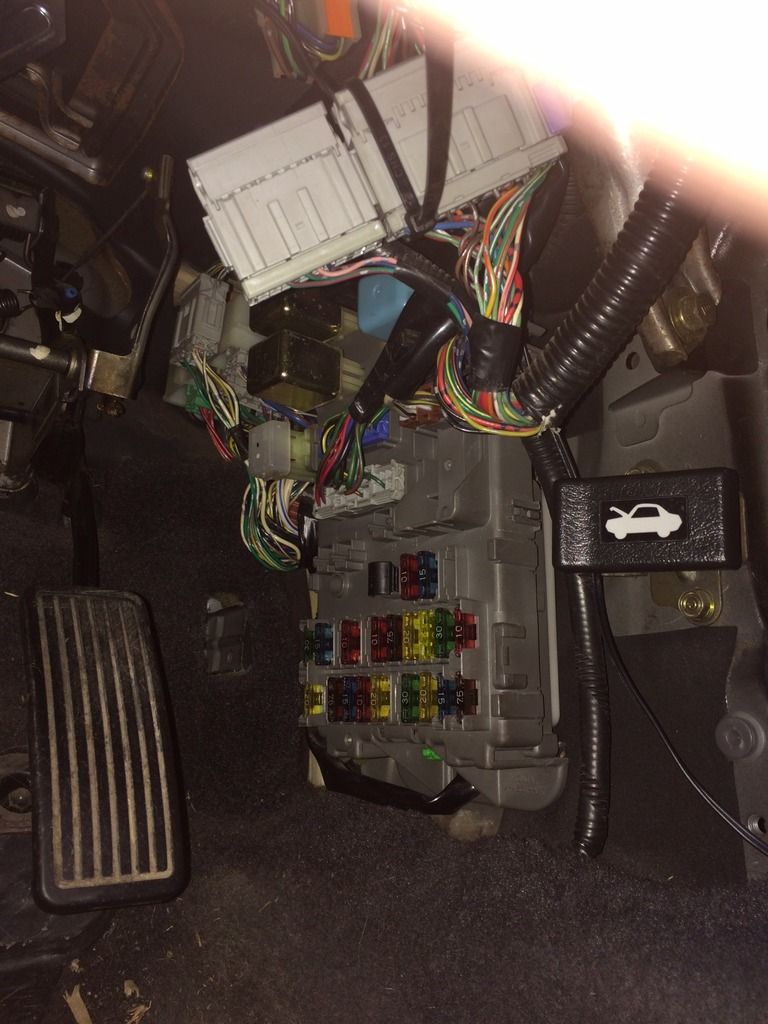

Pic of around my fuse box:

Any suggestions appreciated!

A.

mercutio · Post by **mercutio** » Wed Sep 30, 2015 8:46 pm

have you considered it may be on the passenger side seeing as most of the wiring diagrams are for lhd?

alinton · Post by **alinton** » Wed Sep 30, 2015 9:17 pm

I doubt it, as you're supposed to attach a short tail to it, then the relay goes on the end and bolts to the cruise control bracket.

Post by **vanzep** » Wed Sep 30, 2015 11:34 pm

it is in there - should be a blue taped brown plug at the top of the fuse box just under the blue relay you can see in your pic you can also check down the back of the fuse box on the same line

if you still cant find it then i will try and get some pics from my lude

alinton · Post by **alinton** » Wed Sep 30, 2015 11:39 pm

I looked behind the fuse box - nada.

I'm pretty sure it's not below that blue relay - but I'll check again tomorrow!

A pic of yours would be useful...

Ta

A

Post by **vanzep** » Thu Oct 01, 2015 9:03 am

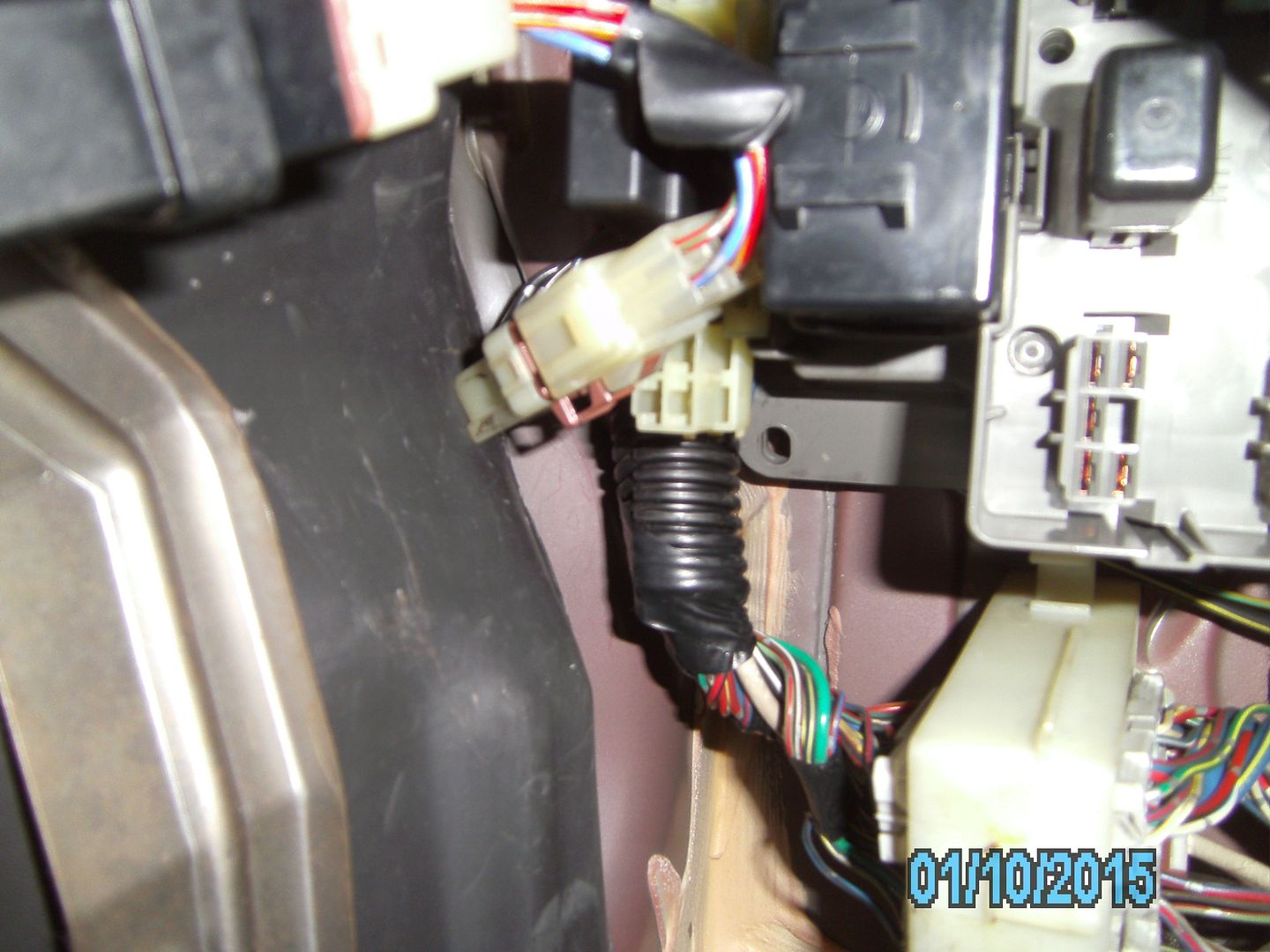

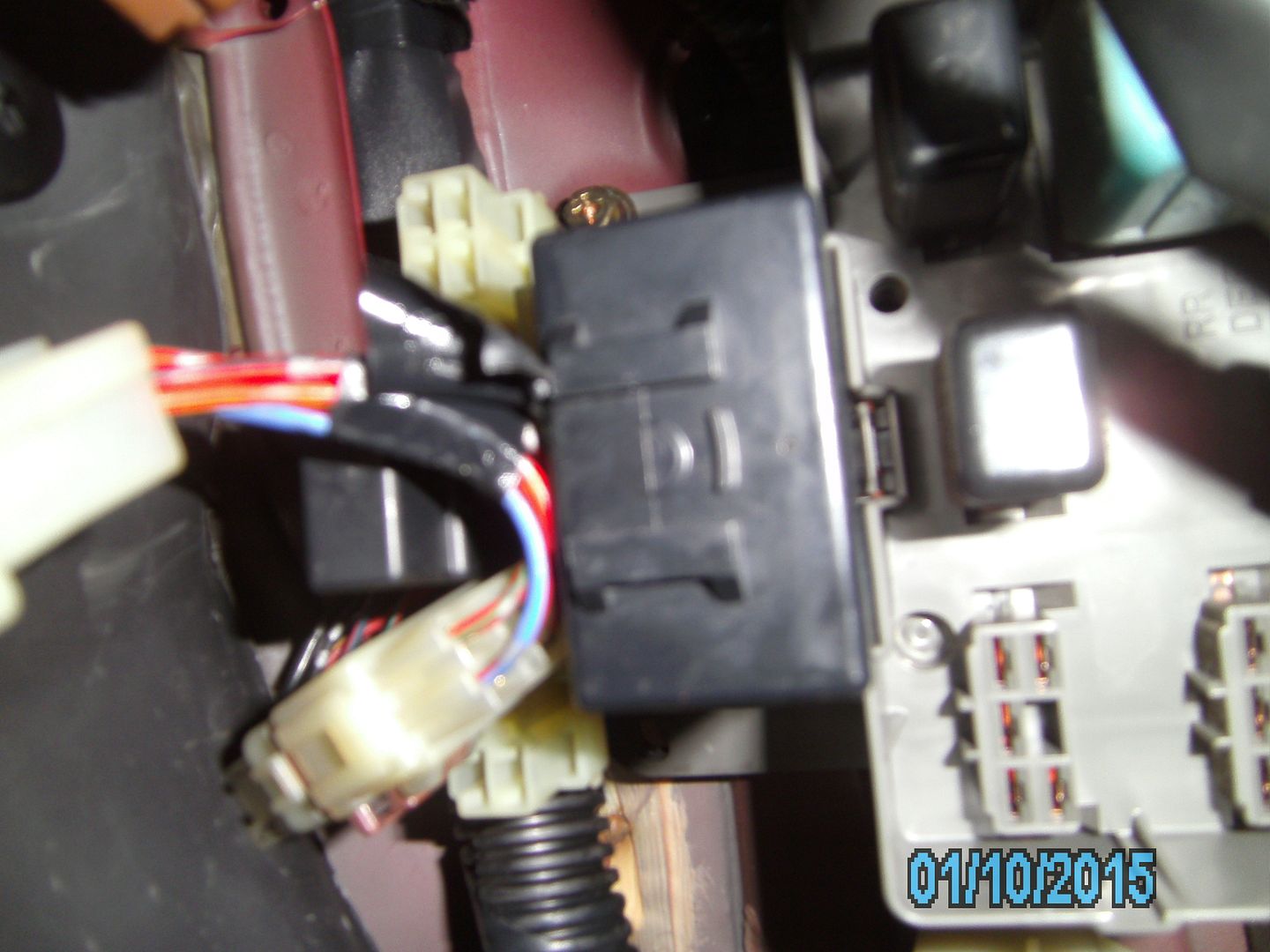

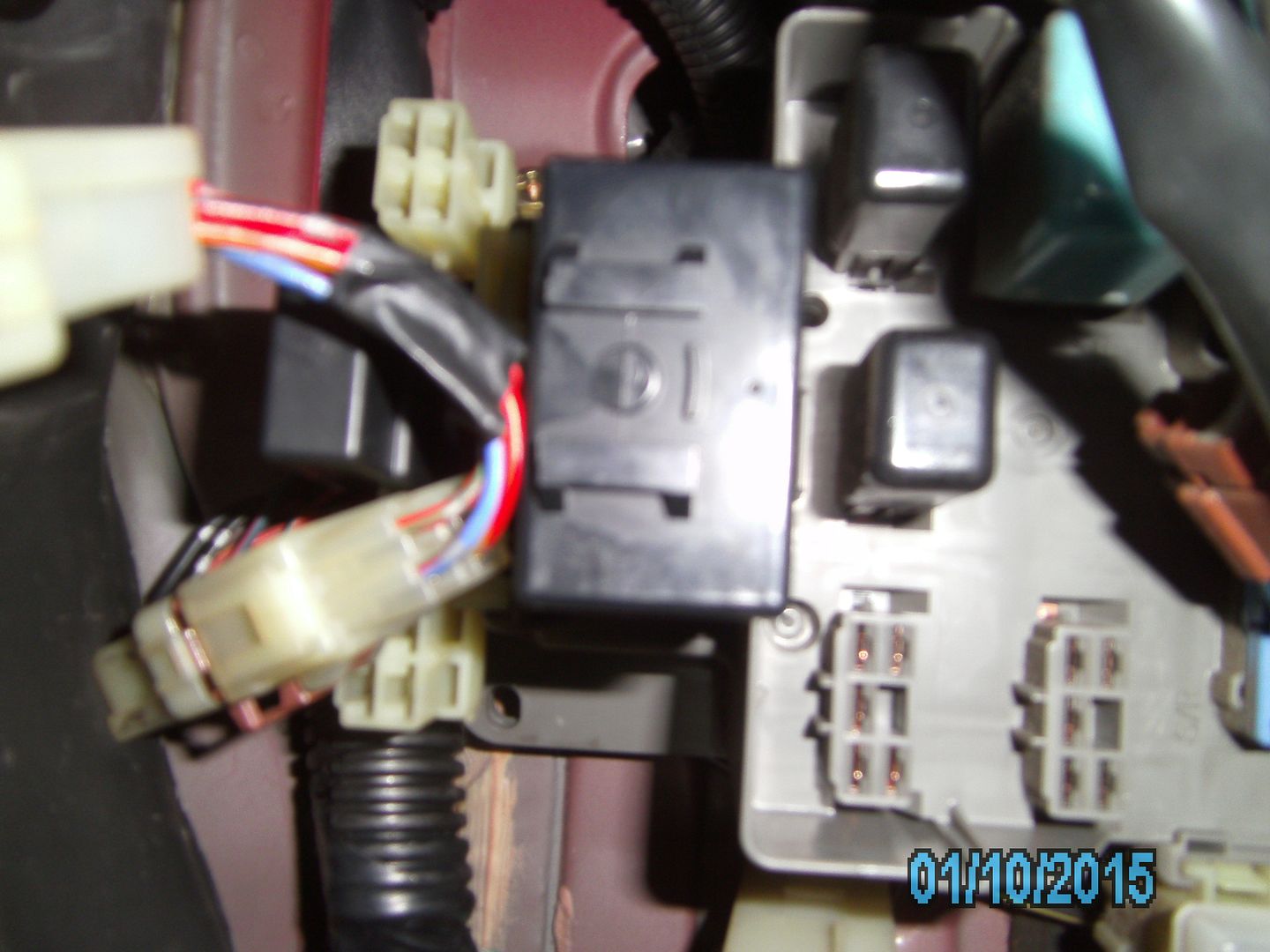

got some pics which should hopefully help

ok so its not quite where i said it was

it looks like it is taped to the back of the loom near the firewall
and im sure the wire colours were different to what was listed in the manual
