Custom H22 Rocker covers

Post by RattyMcClelland » Sat Mar 17, 2012 6:29 pm

I did my 1st rocker cover respray today.
Turned out well.

I have 2 more to respray for people.

I will do as JDMBB4 did on PUK. Only difference is i wont do wrinkle finishes. Instead i will respray "ANY" colour you wish and lacquer it.

The covers are £100 and I will send you your custom rocker cover.
You fit the rocker cover to your car.
Post your old cover back to me.
I refund you £30 upon receipt of your old cover.

So in total the cost is £70 including postage.

I have my own Chipsaway business so i can properly respray with guns an absolutely any car colour
possible.

Here are the tones to make the colours.

And all car manufactures colour swatches

IF YOU WANT A 3 STAGE PEARL AS SHOWN BELOW IT WILL BE AN EXTRA £10 AS THE CLEAR ADJUSTER BASE FOR PEARLS IS EXPENSIVE.

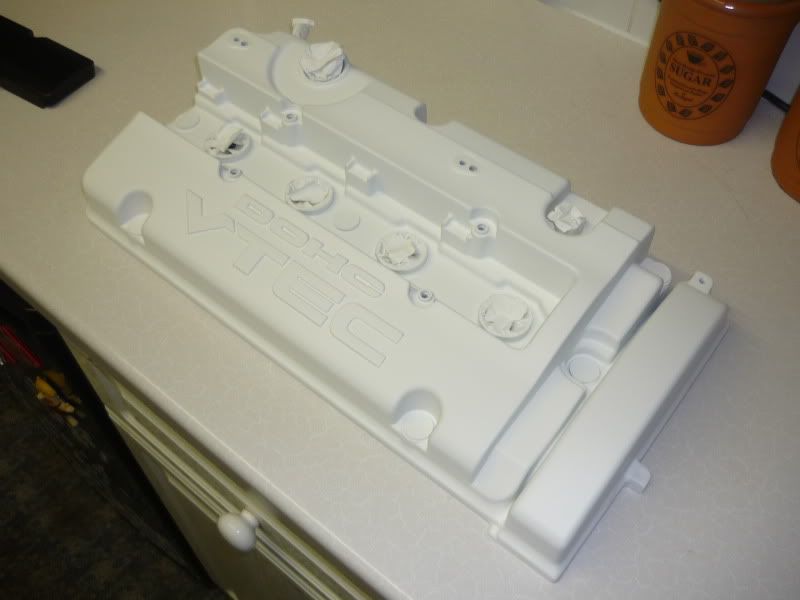

So heres mine.

I bought it shotblasted so i sanded it back with 400 to key it up and degreased ready for etch primer.


Bilt Hamber Echweld etch primer used 1st to stick to the cover and backed off for 10mins at 60degrees with infra red lamps.

Then used 2 coats of 1k base primer backed off for 10mins and sanded back with 1500 on the flat surfaces. Not really necesary TBH. Then degreased/takked ready for paint.

Honda NH603p White diamond Pearl as on my Type S mixed up. Its a waterbased paint that dries with a heatgun and goes hard when backed.

5 coats of Base coat and baked off for 10mins and takked

3 coats of main layer pearl coat baked and takked.

2pac lacquer unique to chipsaway. Gave it 2 coats and baked off for 45mins at 60degree. Unmasked and rubbed back DOHC VTEC. Needs further rubbing and polishing but you get the idea.


Next time i wont mask up the cover bolt holes but just mask up the spark plug covers holes, oil cap and vaccums hoses.


Takes around 5 hours to do for pearls. I will Nitromors the old rocker paint off. So who wants what colour?

User avatar
NafemanNathan
LotM Winner
Posts: 20144
Joined: Sun Aug 08, 2010 9:37 pm
My Generation: 0G
Location: Yeovil, Somerset
Has thanked: 8 times
Been thanked: 124 times

Post by NafemanNathan » Sat Mar 17, 2012 7:25 pm

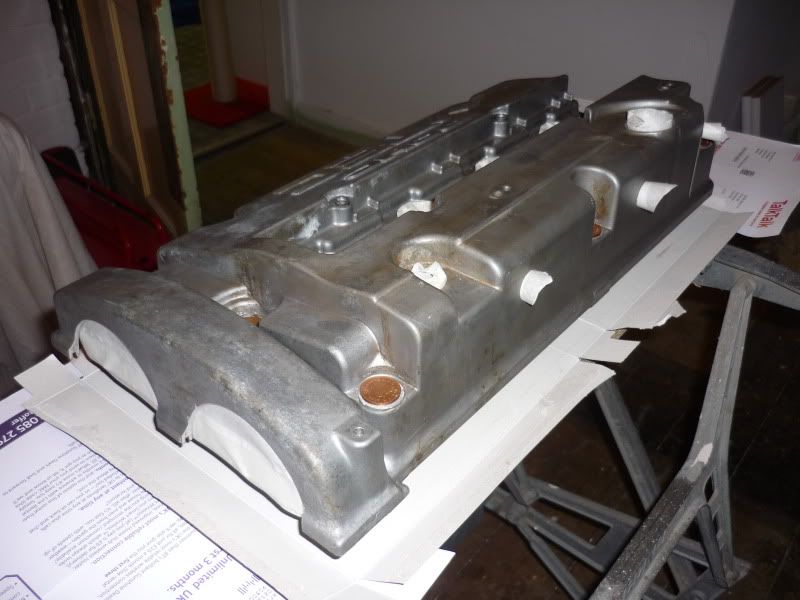

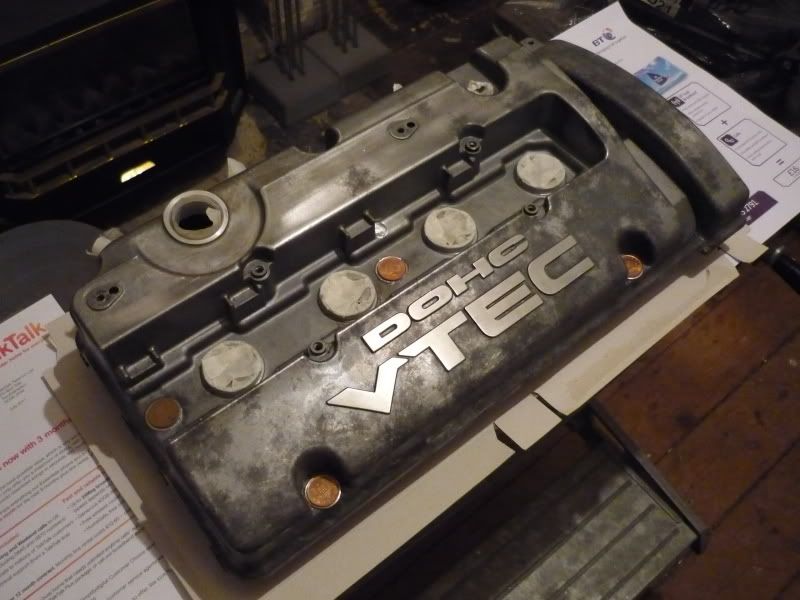

Great service there Ratty. If you weren't wanting to bother masking the cover bolt holes each time (I imagine it is rather time consuming ;-) ) You could do as I do and use 1 penny pieces...



They're the perfect size to cover up the majority of the hole, but leave enough exposed so that the washer will cover the edge of the paint. When the paint's dry, you just give them a swift tap from beneath...

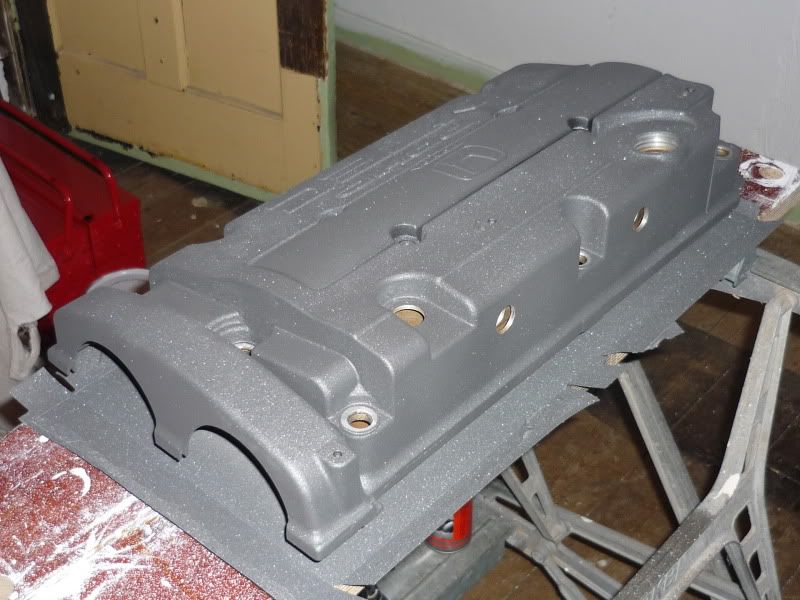

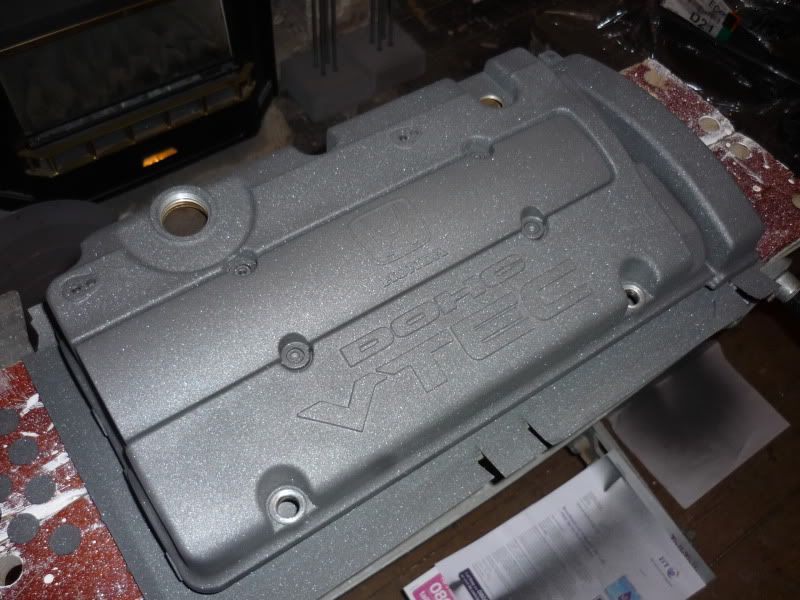

My daily's cover as well...



User avatar
mercutio
LotM Winner
Posts: 14958
Joined: Sun Aug 08, 2010 8:45 pm
My Generation: 5G
Location: Sunny Manchester
Has thanked: 1 time
Been thanked: 4 times
Contact:

Post by mercutio » Sat Mar 17, 2012 7:38 pm

great work both of you 8-)
bristol_bb4 wrote:ahhh a 5th gen, i love 5th gens :D :lol:
Dino wrote:I loves the 5th gen really.... just dont quote me on it... ;)
4thgenphil wrote:Mines 4 1/4 unches mate, sorry

http://www.ludegeneration.co.uk/profile ... -t618.html

User avatar
RattyMcClelland
Moderator
Posts: 9208
Joined: Wed Aug 04, 2010 10:02 pm
My Generation: 5G
PSN GamerTag: RattyMcClelland
Location: Leicestershire
Been thanked: 203 times

Post by RattyMcClelland » Sat Mar 17, 2012 8:01 pm

Great idea on the pennies.
What are the holes on the back of your cover?
Im doing the plug cover flat black too. :lol:

User avatar
rob quilter
Supporter 2014
Posts: 5331
Joined: Mon Aug 09, 2010 1:40 pm
My Generation: 5G
PSN GamerTag: robquilter
Location: Derby

Post by rob quilter » Sat Mar 17, 2012 8:43 pm

Very nice work rattino 8-)
PERFORMANCE PARTS FOR JAPANESE CARS - http://WWW.TOKYOSQUAD.COM

FOLLOW US ON FACEBOOK - http://WWW.FACEBOOK.COM/TOKYOSQUAD

User avatar
Carlosfandango
Supporter 2015
Posts: 563
Joined: Fri Mar 04, 2011 10:58 pm
My Generation: 5G
Location: Lanky-shire
Has thanked: 93 times
Been thanked: 42 times

Post by Carlosfandango » Sun Mar 18, 2012 8:40 am

I'm liking the idea of a colour coded cover, but, as my original is immaculate, I'm not willing to repaint it ;)

What's the current going rate for a mechanically sound (right term?) 2nd hand cover ?
Carl

The older I get the faster I was :)

My Type-S

User avatar
RattyMcClelland
Moderator
Posts: 9208
Joined: Wed Aug 04, 2010 10:02 pm
My Generation: 5G
PSN GamerTag: RattyMcClelland
Location: Leicestershire
Been thanked: 203 times

Post by RattyMcClelland » Sun Mar 18, 2012 9:23 am

Well i offer £30 back for your old cover and i just got another cover off PUK and egay for £30 each.

User avatar
nitin_s1
Posts: 10499
Joined: Tue Aug 03, 2010 1:09 pm
My Generation: 5G
PSN GamerTag: N171N
Location: London
Has thanked: 147 times
Been thanked: 135 times
Contact:

Post by nitin_s1 » Sun Mar 18, 2012 9:50 am

Nice work Rattin. :twisted: (Rep)

User avatar
Slashdotdash
Posts: 246
Joined: Wed Feb 08, 2012 7:20 pm
My Generation: 5G

Post by Slashdotdash » Sun Mar 18, 2012 10:14 am

very nice :)
Go Hard Or Dont Go At All!

User avatar
stk prelude
Posts: 743
Joined: Sun Jan 29, 2012 10:17 pm
My Generation: 5G

Post by stk prelude » Sun Mar 18, 2012 2:24 pm

Very Sexy mate 8-)
