Merlin's 4G Time Attack Lude

Post by **NafemanNathan** » Wed Nov 07, 2012 1:29 pm

Merlin wrote:Cheers!

4thgenphil wrote:so next year i am coming up and staying at your for a track day?!
Any time you want! We can show those Subaru's a thing or two

I'd say the same, but well... You know

Post by **Merlin** » Wed Nov 14, 2012 9:42 am

I'm almost at the stage where the engine swap can go ahead

I took part in the H-Tune group buy and got the Competition Clutch Stage 5 4 puck paddle clutch, got a new TPS as the one on the new engine was cracked, bought some heat wrap for the cold induction kit Indigolemon gave me, a new cooling plate on the cheap, and the bulkhead fixing for the heater hoses.

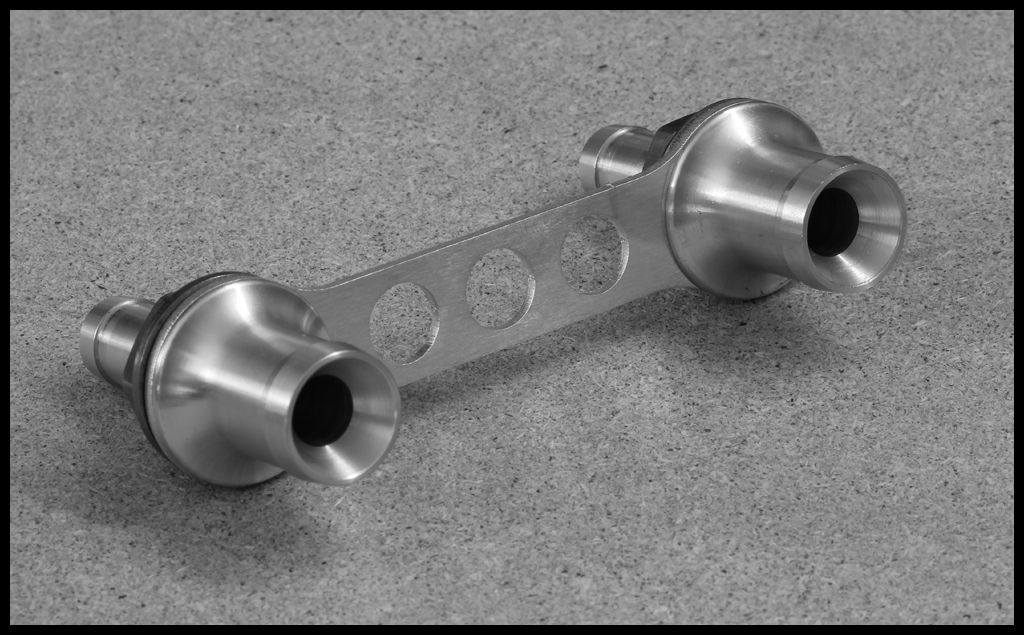

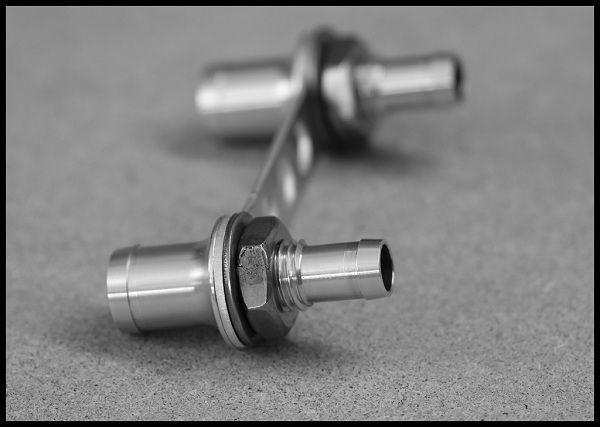

The hoses that come off the engine are 3/4" (19mm) so I got a new fixing that eliminates the stock copper pipes. It also reduces down to 1/2 (13mm) for the interior pipes. While the engine is out I'm going to get all of the holes in teh bulkhead from the old heater hoses and aircon welded over.

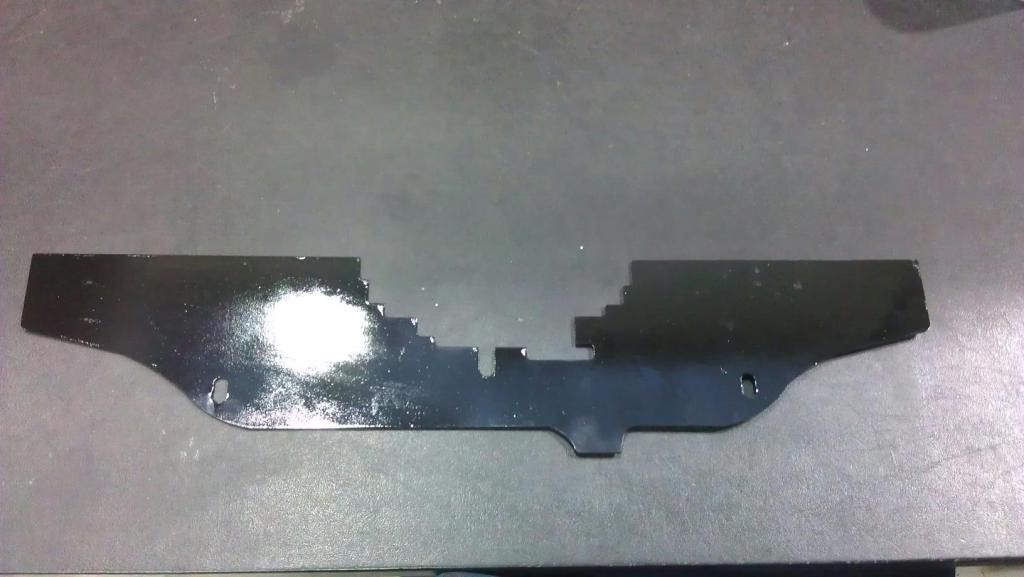

Metal cooling plate:

All I really need now is a new oil cooler setup. I decided I'm getting a thermostatic sandwich plate from Mocal, the plate opens feeds to the external cooler when the oil reaches 80C. That way if its ever really cold the oil will be kept at optimal temperature, not too hot but not too cool

Post by **NafemanNathan** » Wed Nov 14, 2012 10:14 am

Nice machined part

Shame you don't get to see most of it

lol

mercutio · Post by **mercutio** » Wed Nov 14, 2012 10:34 am

good part though those copper pipes are useless

Post by **vanzep** » Wed Nov 14, 2012 2:23 pm

good progress - just keep it going

give me a shout when your heading down to your old boys workshop

Supercharged 無限MUGEN BB1 Profile · Post by **nucleustylzlude** » Wed Nov 14, 2012 8:52 pm

Nice vid bud - is that an app that adds all that info to the side? Cool if it is. Also how do you get the interior vid in the corner?

Post by **Merlin** » Thu Nov 15, 2012 9:03 am

Yeah thats an app called Optrix Video Pro, it records all the data and adds it to the video. The interior vid is shot with a cheapo chinese made incar DVR, then added to the vid with Adobe Premier Pro

Supercharged 無限MUGEN BB1 Profile · Post by **nucleustylzlude** » Thu Nov 15, 2012 9:42 am

Nice skills bud. Looks really good. I'll have to get that app. I've played with Premier Pro back at College, have to see if I have an old dodgy copy somewhere to have a play.

Can't wait to see your new beast put together, Time Attack competing is gonna be amazing. I think we're all a little jealous. Maybe I'll join it too one day - that'll be, what..about the year 2020?

Supercharged 無限MUGEN BB1 Profile · Post by **nucleustylzlude** » Thu Nov 15, 2012 9:42 am

Not rep'd you enough for this build. So +rep.

Post by **Merlin** » Sun Nov 18, 2012 9:39 pm

^^ Cheers

I have been using the the OEM intake with my H22a2 but this wouldn't do the job for the new engine. Through some kindly given parts from other Luders I have cobbled together something that should be capable. I'm told piping of Ebay intakes get really hot when exposed in the engine bay, so I have wrapped it. Im going to spray it with hight temp coating which protects the wrap, stops little bits of fibre glass coming off, and adds the the shielding effect. Nimbus Motorsport here on the forum sells it at a decent price. The bore of the intake piping matches the Apexi Super Intake filter. I just need to clean the filter & get a few rubber couplers to finish it off.
