Photo request/need info - 5th gen Dash sensors

Wing8806 · Post by **Wing8806** » Wed Mar 30, 2016 4:04 am

Hello all

I'm looking for some good photos of both dash sensors as i'm about to cut into mine for the digital climate control install and want them as close to perfect as possible.

Any rough measurements would be greatly appreciated as well.

Thanks!

mills · Post by **mills** » Wed Mar 30, 2016 6:46 am

You shouldn't need to cut into the dash, the blanks should be in place for the jdm climate sensors buddy

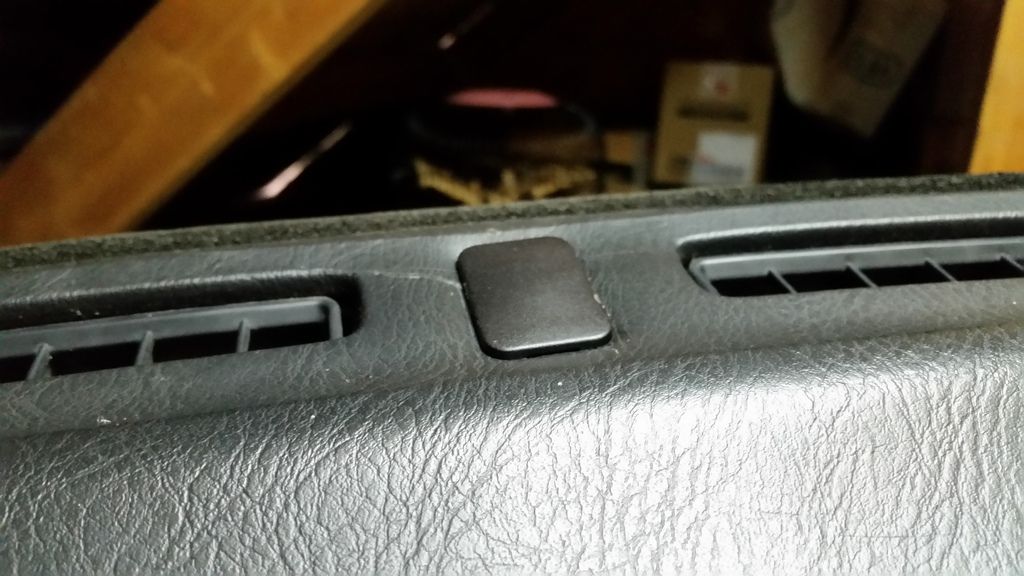

I haven't got any pics but 1 is dead center of the dash, right at the back under the windscreen. And the other is right at the front in between the stereo surround and steering wheel.

Wing8806 · Post by **Wing8806** » Wed Mar 30, 2016 4:13 pm

mills wrote:You shouldn't need to cut into the dash, the blanks should be in place for the jdm climate sensors buddy

I haven't got any pics but 1 is dead center of the dash, right at the back under the windscreen. And the other is right at the front in between the stereo surround and steering wheel.

Ah if only it were that simple.

I drive a USDM Prelude. 2001 Left hand drive version. We did not receive the digital unit as an option here, so I've had to rewire everything in order to have a functioning unit.

No blanks or templates beneath the dash, as some doors and rear bumpers do for optional lights. I have some photos but none are good enough to get it how I want. No measurements either.

mills · Post by **mills** » Wed Mar 30, 2016 8:27 pm

Oh right, that sucks then

I'll take a couple of picks tomorrow when it's light and post them up buddy

Dennis van dijk · Post by **Dennis van dijk** » Wed Mar 30, 2016 10:01 pm

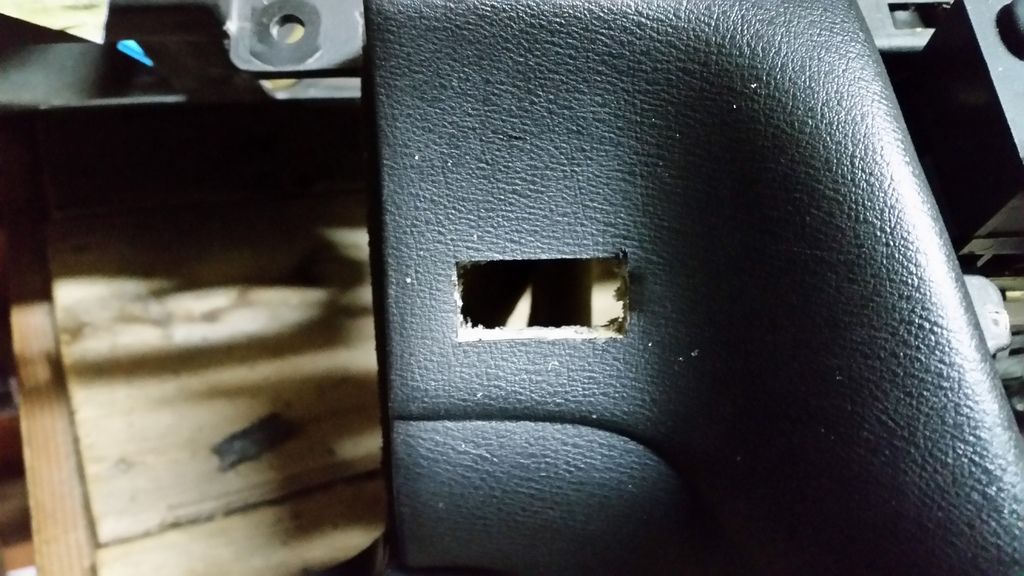

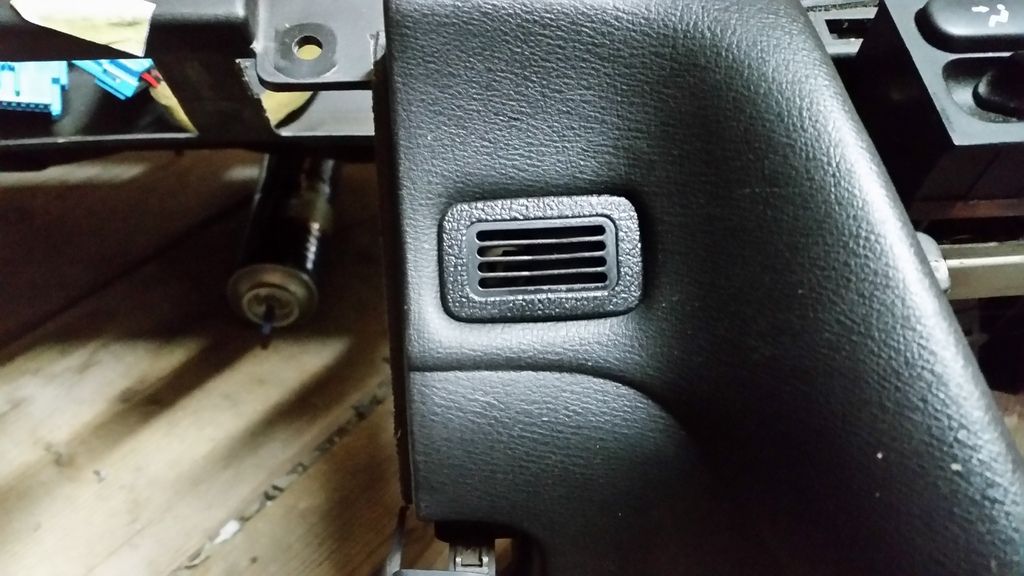

Did some lhd ludes

I hope you can use my photos

When you need some info you always can pm me

[URL=http://s58.photobucket.com/user/kadettgsi16V/media/
Mobile%20Uploads/20150315_160531_zpsarxytsc2.jpg.html]

[/URL]

Wing8806 · Post by **Wing8806** » Fri Apr 01, 2016 6:26 am

Thanks Gents!
